What you need to get started

1. HomeMate Smart Downlight 15W.
2. Phone must be connected to 2.4 Ghz WiFi network only (and not 5 Ghz).
3. Location should be ON.
4. Mobile Bluetooth should be ON.

Download app and Register account

1. Download HomeMate Smart App from App Store or Google Play.

       - Use link to download HomeMate Smart app - https://a.smart321.com/homematesmart

       - You can scan the QR code below to download the HomeMate Smart App：

          You can also search “HomeMate Smart” in either App Store or Google Play to install the App.

      2. Open App and register your account.

      3. Create Home in Home Management Setting.

      4. Set location.

Pairing of Smart Downlight 15W with HomeMate Smart app can be done through 2 process flow in app. If Process 1 fails, try Process 2 :

Process 1: Auto-detection using Bluetooth

Steps to connect HomeMate Smart Downlight with HomeMate Smart App

1. Install the HomeMate Smart Downlight 15W to its place and give electrical connections.
2. Connect your mobile with home Wi-Fi(2.4Ghz).
3. Bluetooth and location must be On.
4. Open the HomeMate Smart App.

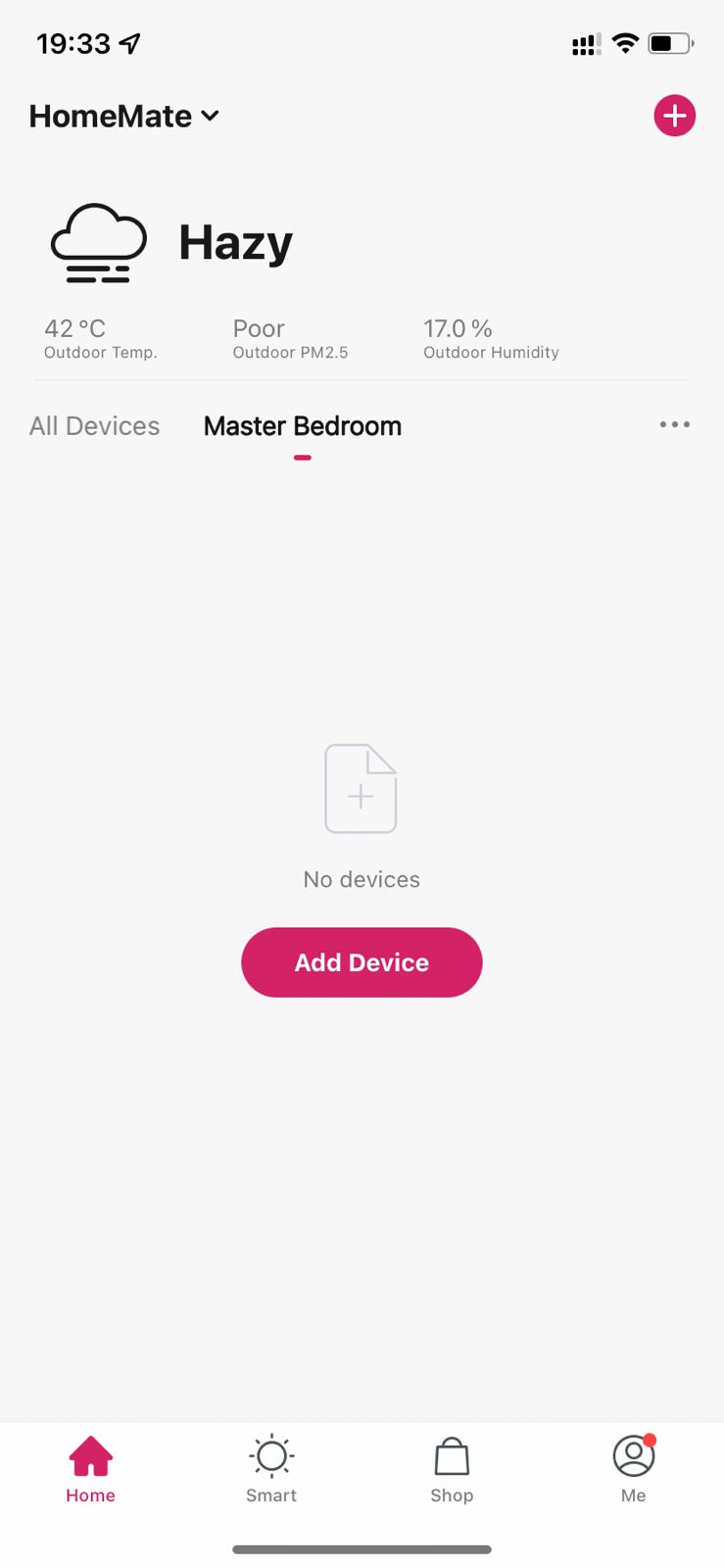

5. Tap '+' at the top right corner or 'Add device' button on the Home screen.

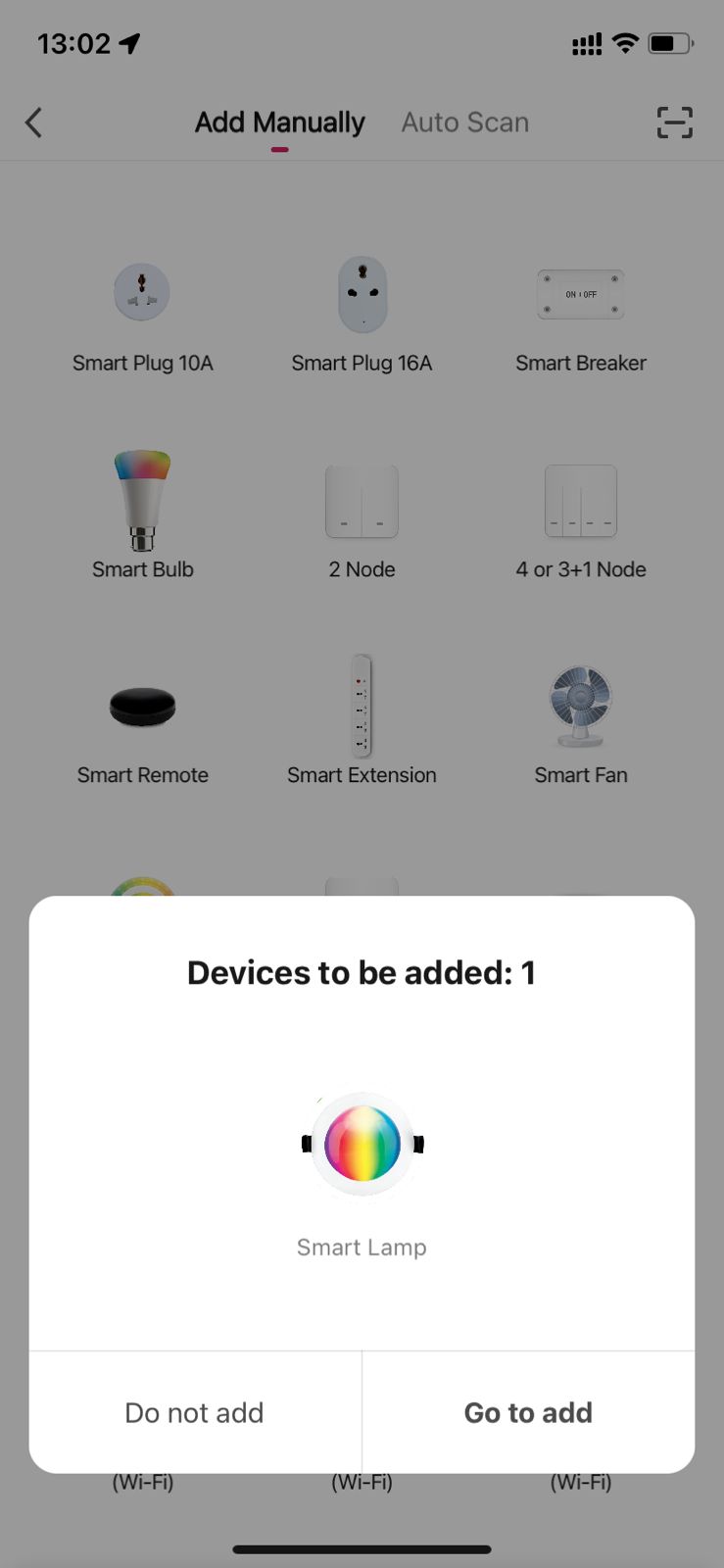

6. It will automatically show the nearby device ready to be paired.




7. Tap on "Go to add"

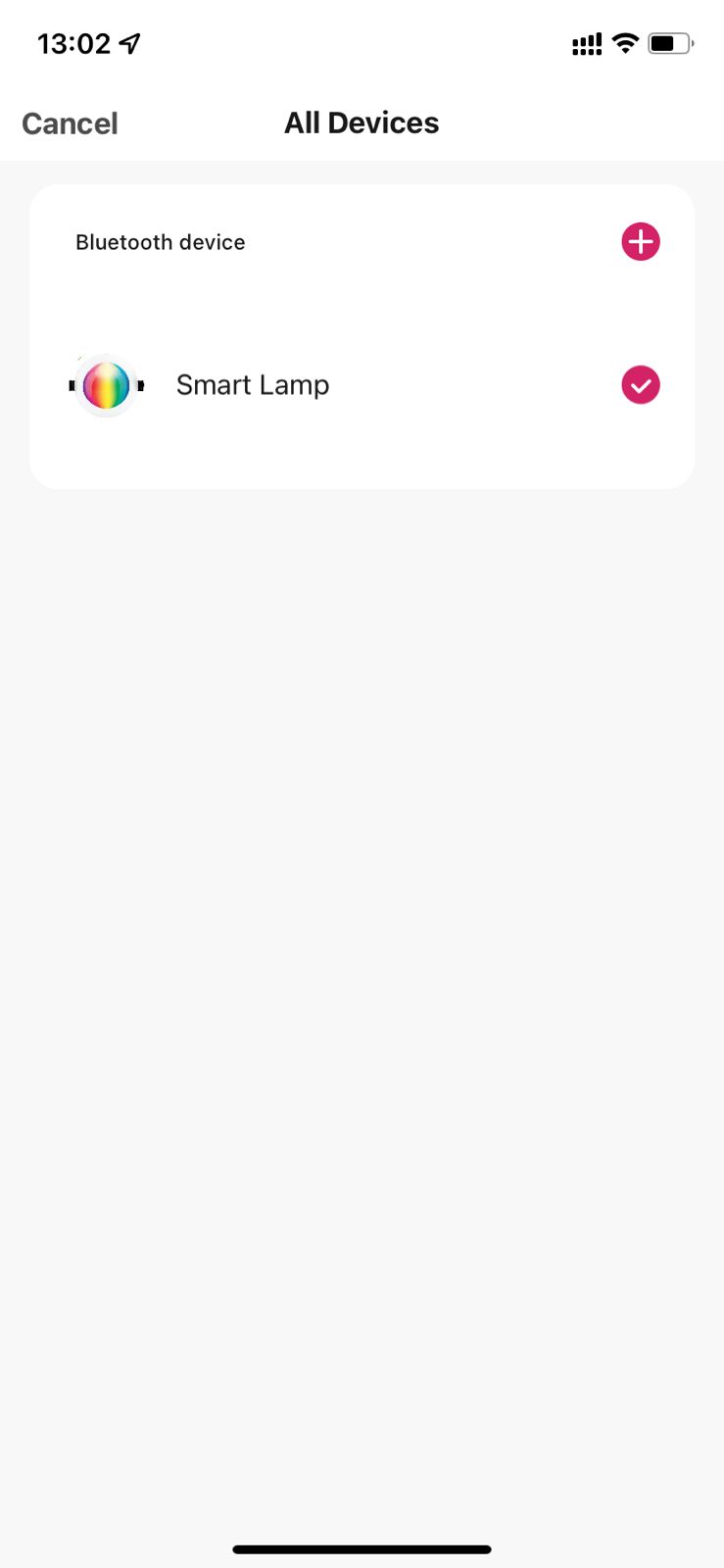

8. Tap '+' at the top right corner to add the device.

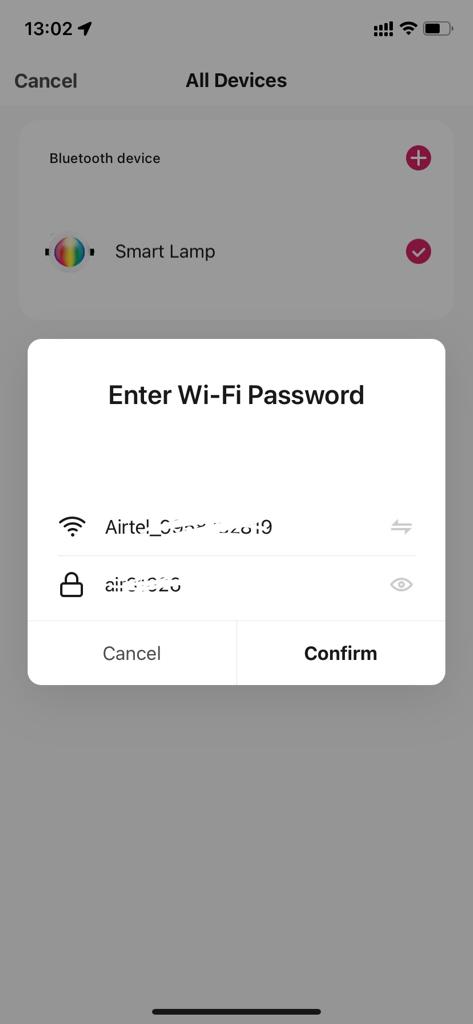

9. Enter Wi-Fi Password then tap on "Confirm".

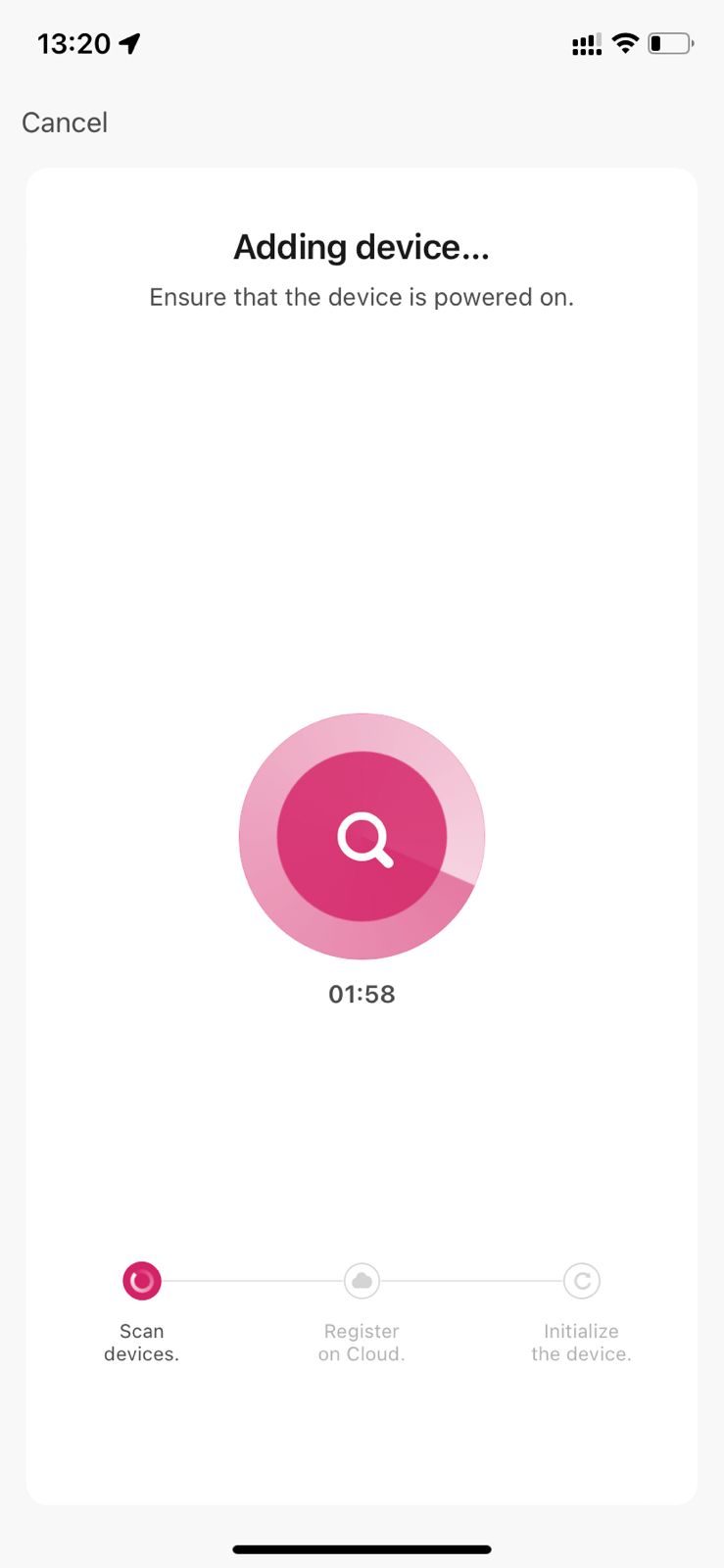

10. It will connect to the HomeMate Smart Downlight.

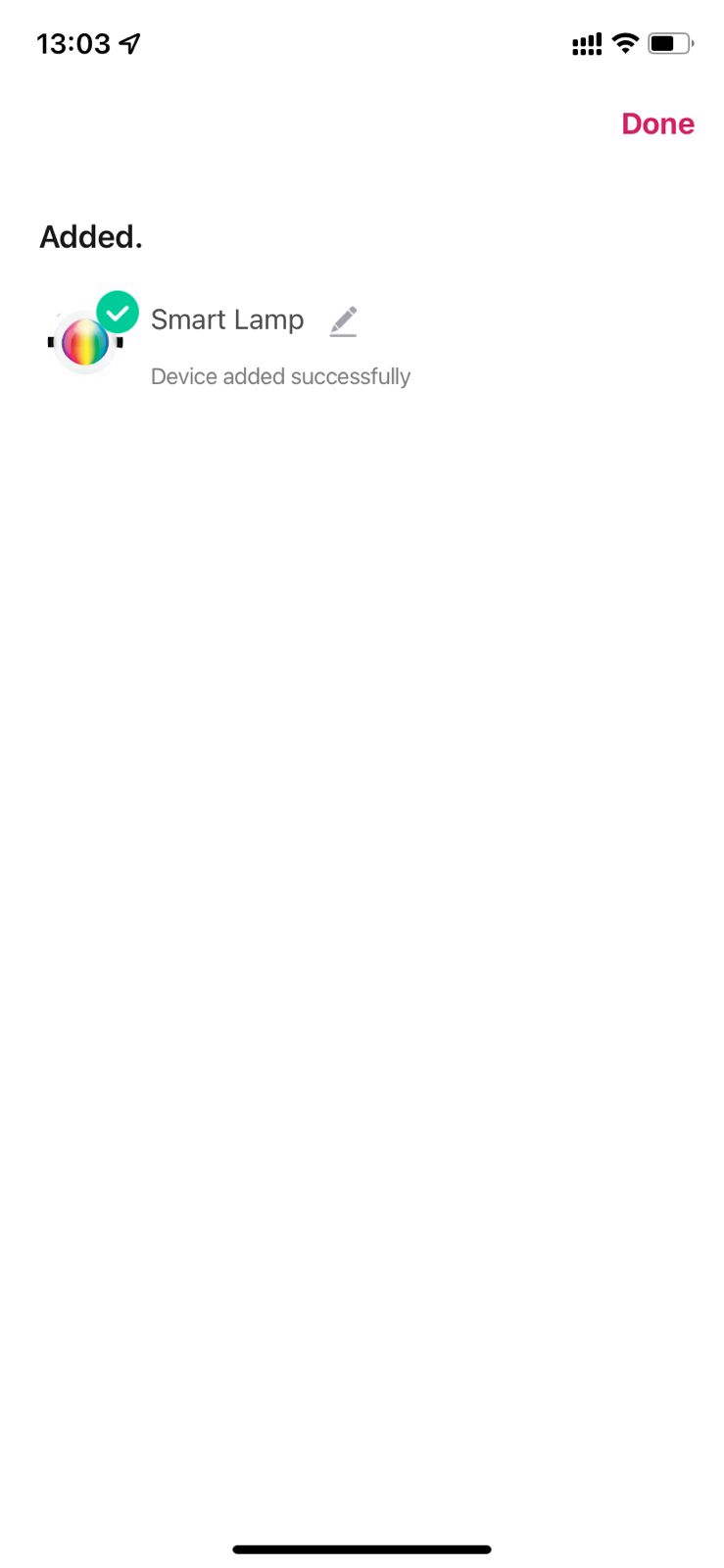

11. After adding you can edit the name of the HomeMate Smart Downlight.
12. Tap on pencil mark located after Smart Downlight.

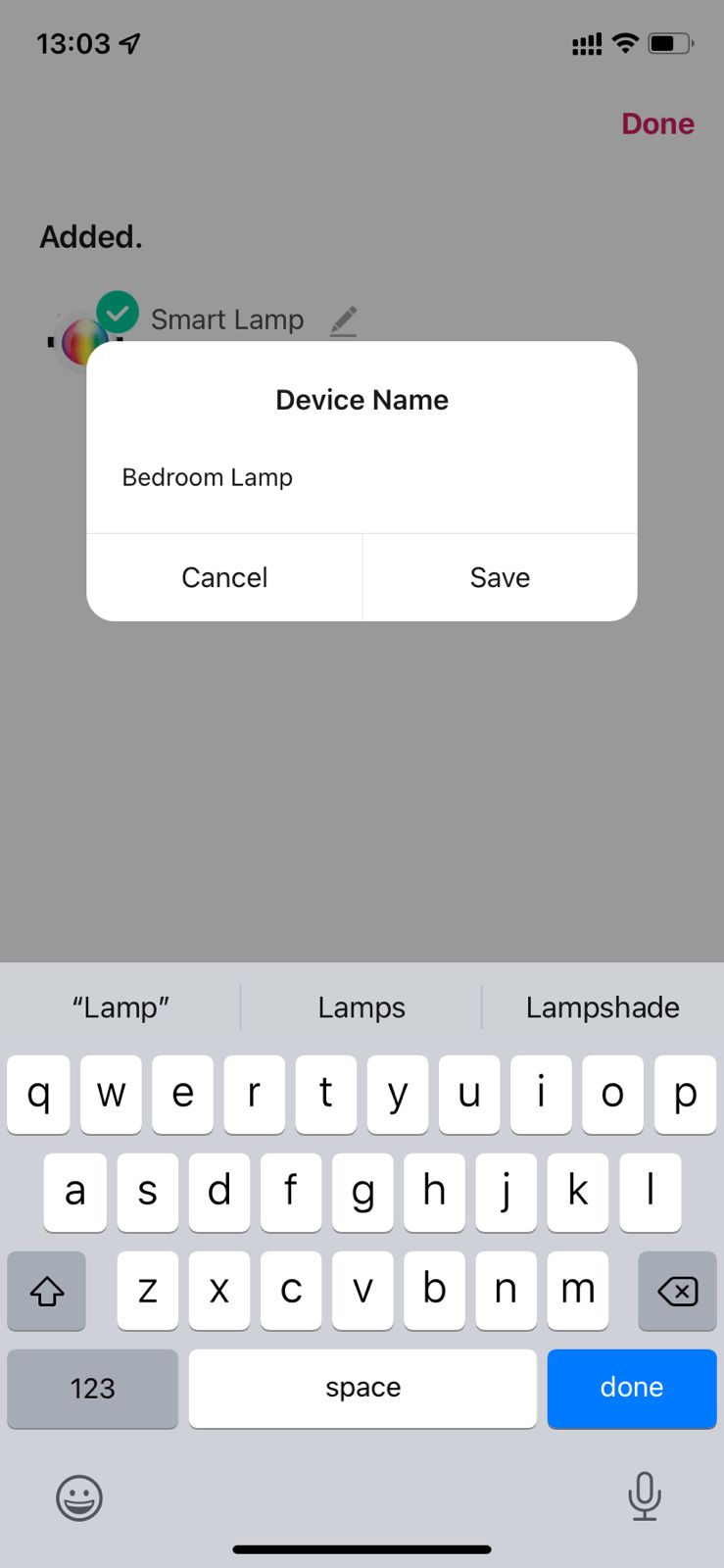

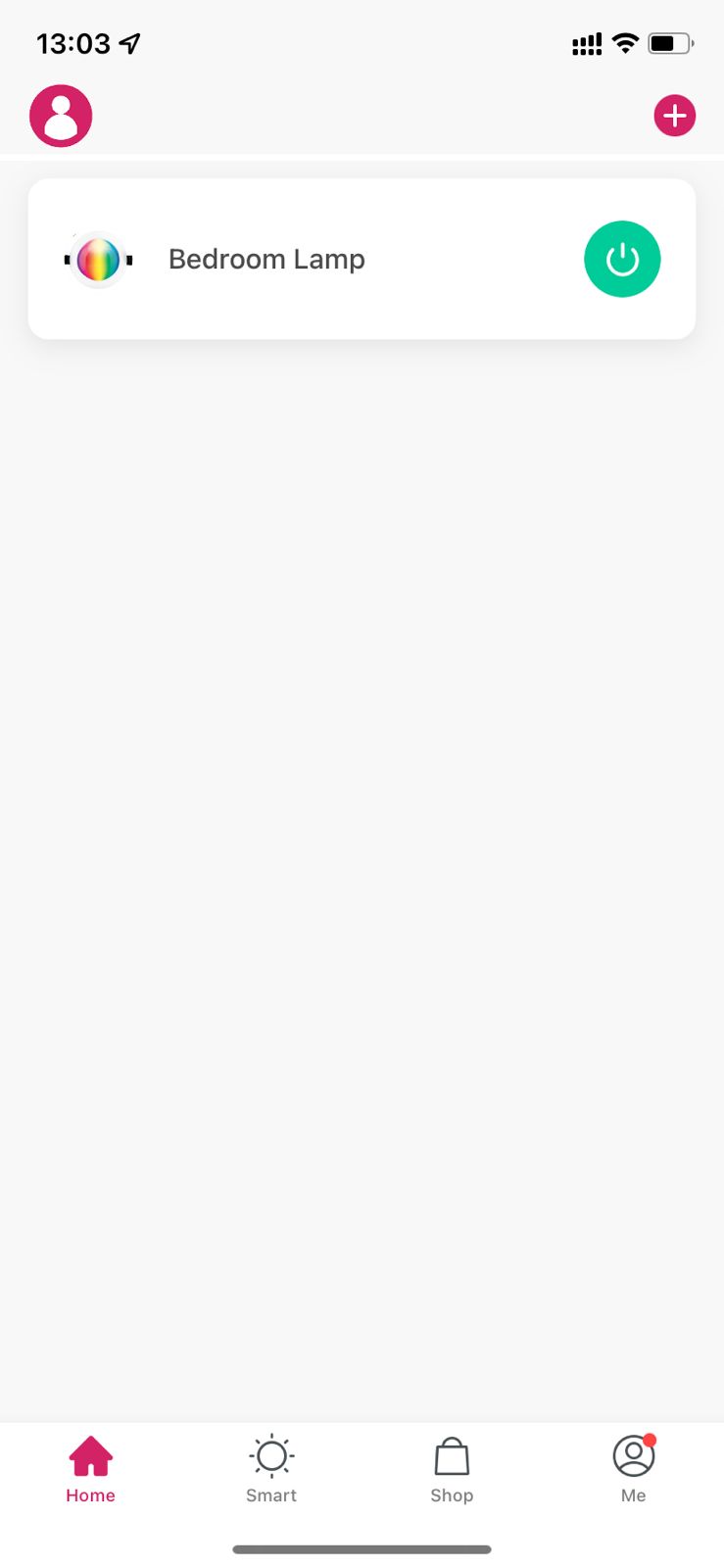

13. Type the desired name like "Bedroom Lamp" tap on "Save" then tap on "Done" located on the Top right corner.



Process 2: Using Search device Wi-Fi process flow:

Steps to connect Smart Downlight with HomeMate Smart App

1. Install the HomeMate Smart Downlight 15W to its place and give electrical connections.
2. Connect your mobile with home Wi-Fi(2.4Ghz).
3. Bluetooth and location must be On.
4. Open the HomeMate Smart App.
5. Tap '+' at the top right corner or 'Add device' button on the Home screen.

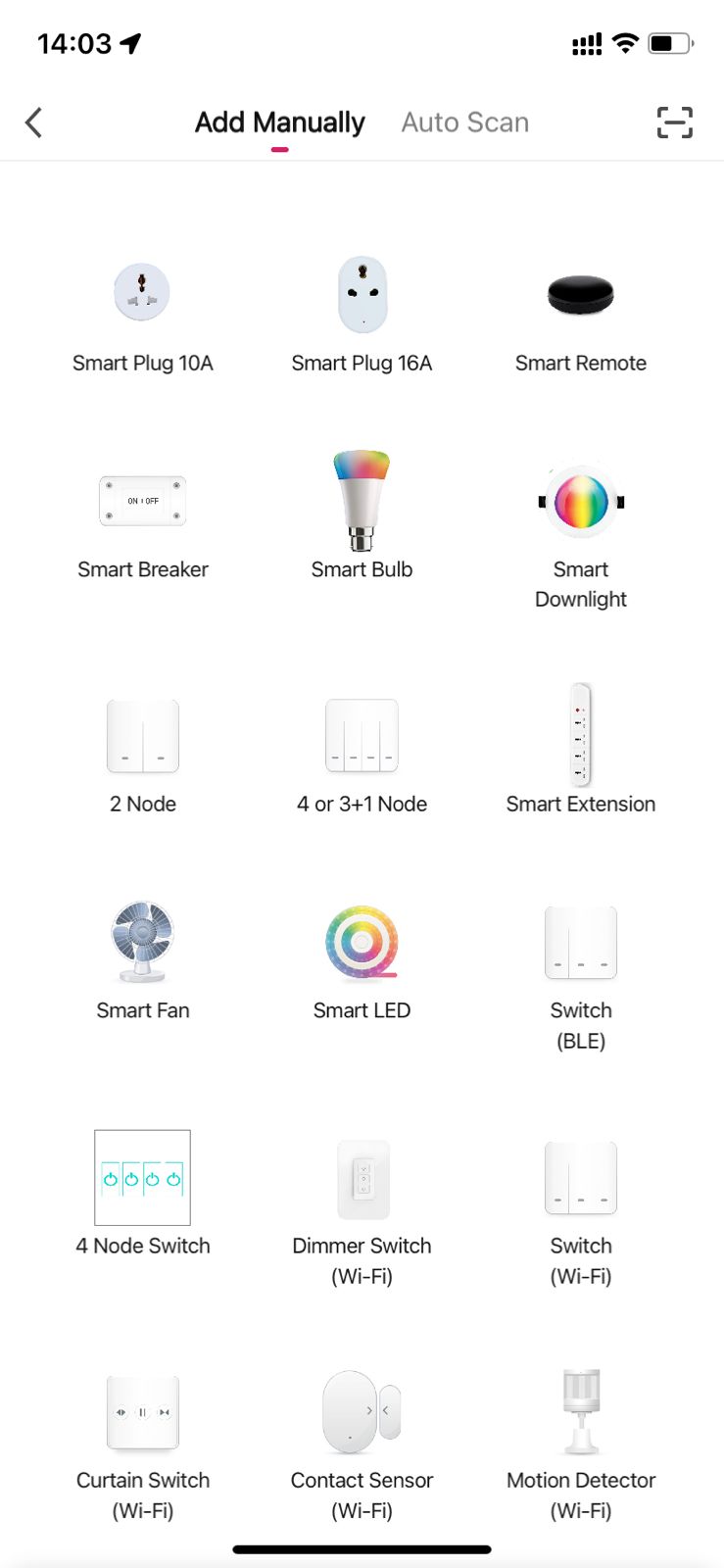

6. Select Smart Downlight.

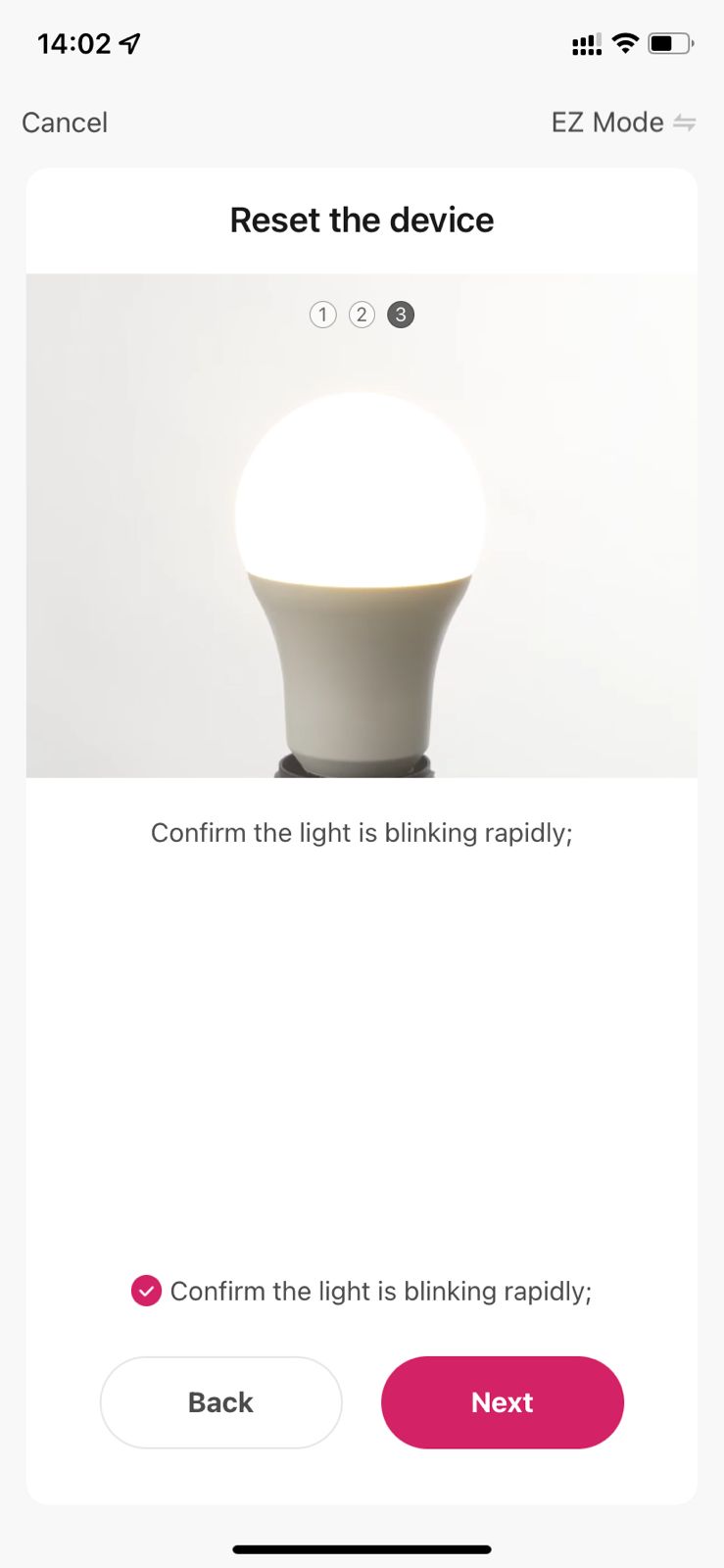

7. Make sure that Smart Downlight flashes and then tap "Confirm indicator rapidly blink" to go to next step, If the indicator is not flashing quickly, then try to switch the Smart Downlight on and off 4-5 times manually.

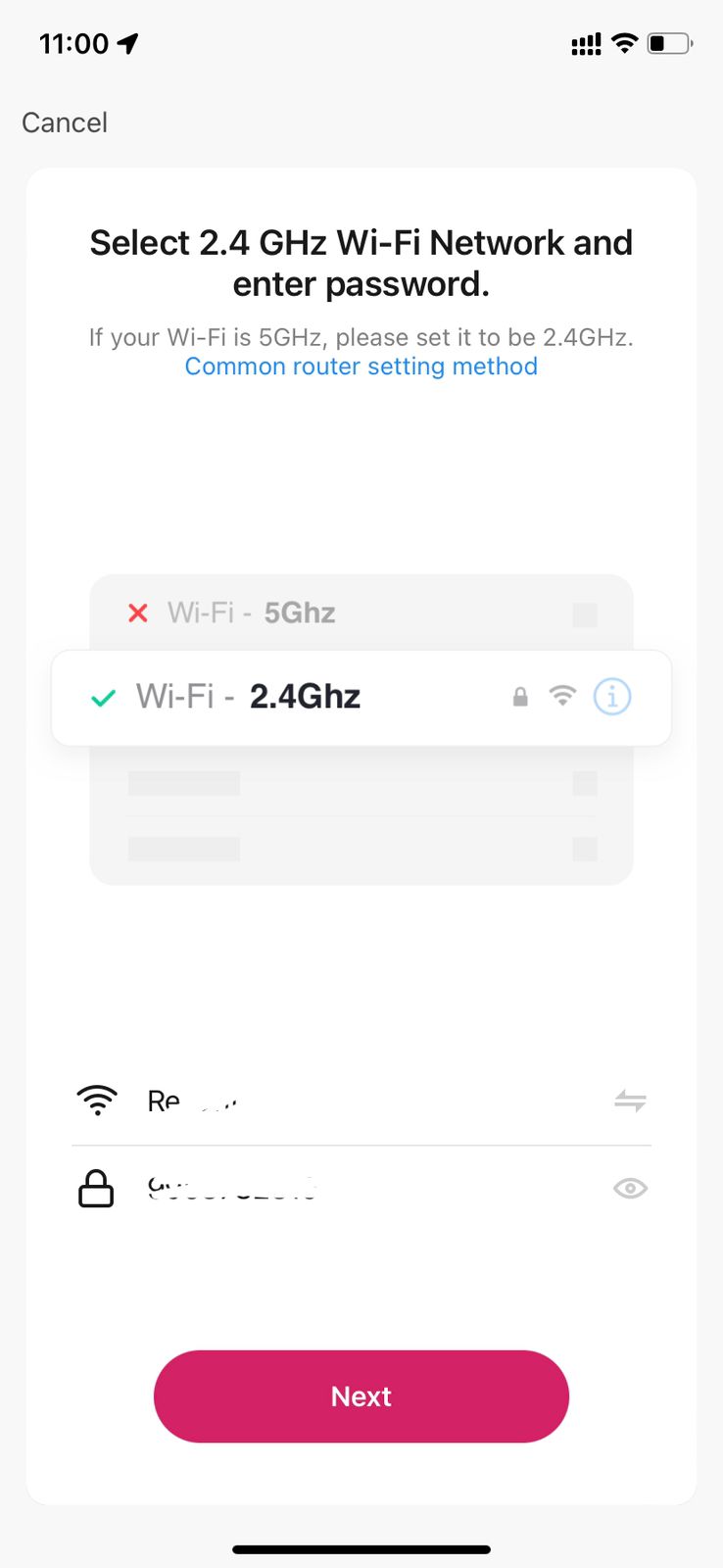

8. Select Wi-Fi 2.4Ghz and type the password then tap on "Next"







9. Add successfully message appears once device is connected.

Specifications of HomeMate Smart Downlight 15W:

1. 16 Millions Colour (RGB)+Tunable White (2700K-6500K)

2. Wattage: 15W, Lumens: 810*, Dimming 0-100%

3. Type- Concealed, Shape- Round, Cutout- 166mm.

4. Wireless Type:2.4GHz, BLE (Bluetooth)

5. Scheduling, Timer, Scenes, Family Sharing

6. Last State Memory

7. Music Sync, Grouping.

8. Light diameter- 16.6 & W- 3.5 cms, Driver- 10.6 x 4.5 x 2.3 cms.

Legal Disclaimer:

Loss or damages resulting from un-authorized adaptations/adjustments/tampering/improper installation of the product are not covered. Also, Accidental/Physical/Water damages and damages due to High Voltage burnouts are out of the purview.
