HomeMate Smart 4 Module Touch Panel

HomeMate Smart 4 Module Touch Panel

What you need to get started

  1. You need a Smart touch panel, Android/IPhone and a 2.4 Ghz Wi-Fi Network.
  2. Phone must be connected to 2.4 Ghz WiFi network only (and not 5 Ghz).
  3. Location should be ON.
  4. Mobile Bluetooth should be ON.

Download app and Register account

  1. Download HomeMate Smart App from App Store or Google Play.

       - Use link to download HomeMate Smart app - https://a.smart321.com/homematesmart

       - You can scan the QR code below to download the HomeMate Smart App：




          You can also search “HomeMate Smart” in either App Store or Google Play to install the App.

      2. Open App and register your account.

      3. Create Home in Home Management Setting.

      4. Set location.

Paring of HomeMate Smart Touch Panel with HomeMate Smart App.

Steps to connect HomeMate SmartTouch Panel with HomeMate Smart App

  1. After giving input and Load connection to the Touch Panel check if the LED is blinking. If it is not blinking, follow the below steps to reset the device:
    1. Press and hold the button until the red backlight turns on, then release (around 10 seconds) to enter the configuration state. White LEDs will blink.
    2. Press and hold the button again until the red backlight turns on (around 5 seconds) to enter network pairing state. Red LEDs will blink.

     2. Connect your Mobile with Home WiFi(2.4ghz).

     3. Bluetooth and location must be On.

     4. Open the HomeMate Smart App.

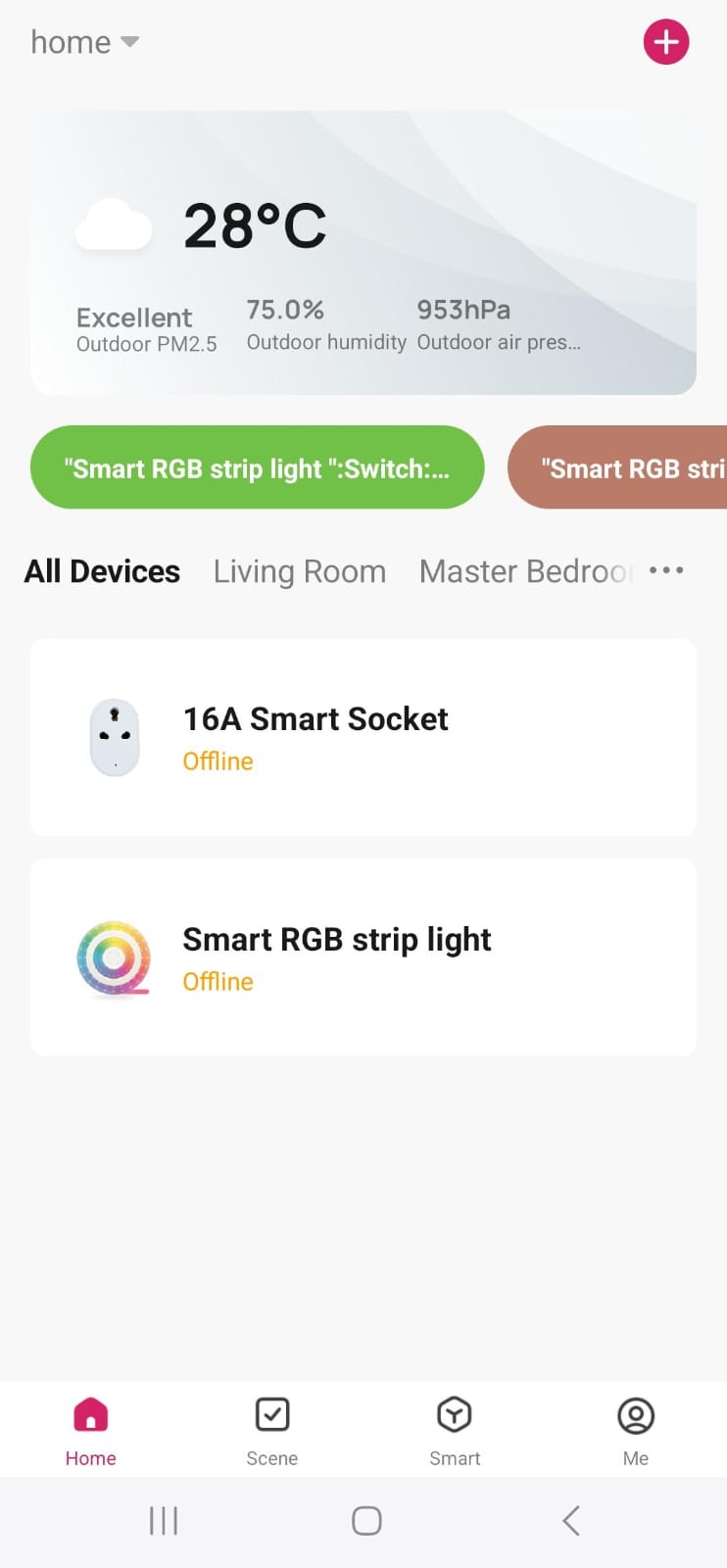

     5. Tap '+' at the top right corner or 'Add device' button on the Home screen.

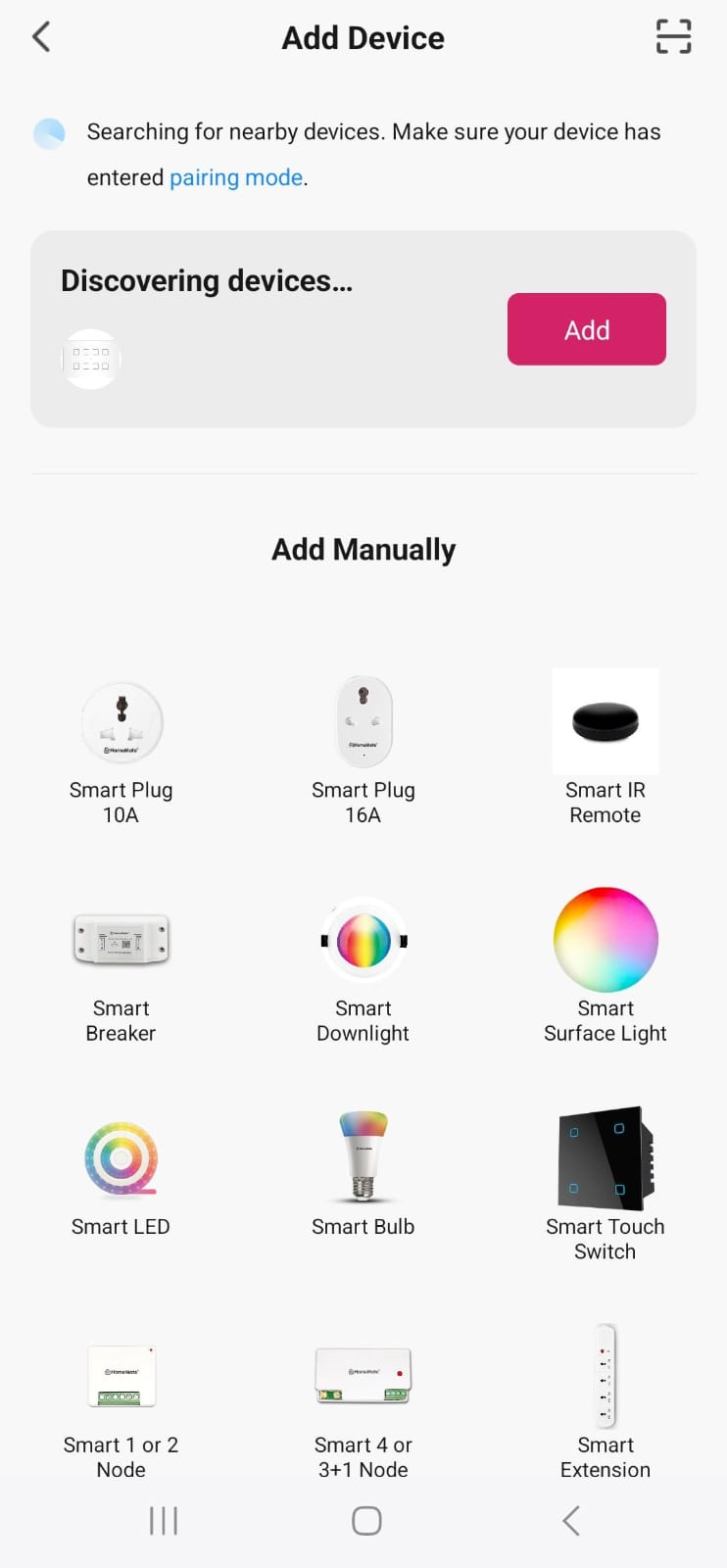

   6. It will automatically show the nearby device ready to be paired.








      7. Tap on "Go to add"

      8.  Tap '+' at the top right corner to add the device.

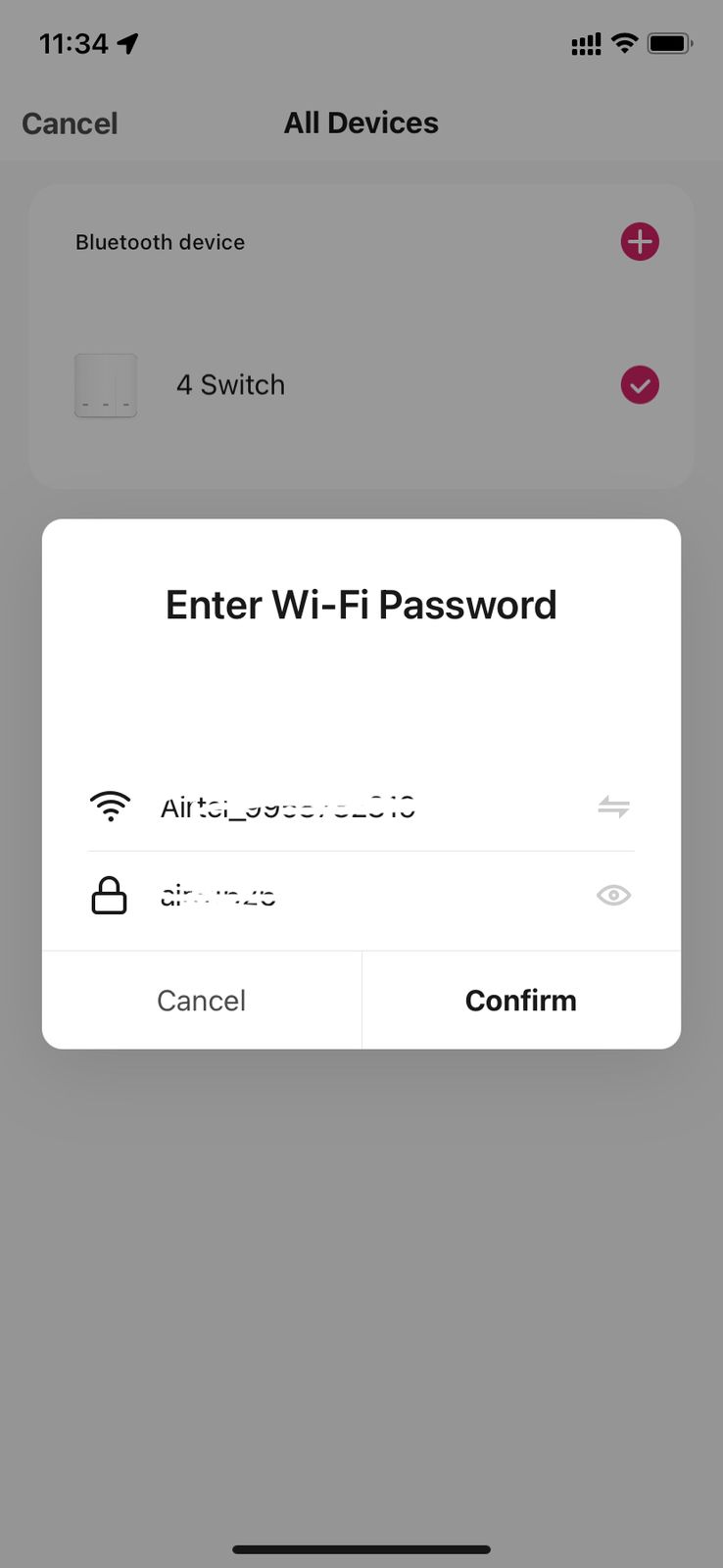

  9. Enter Wi-Fi Password then tap on "Confirm".

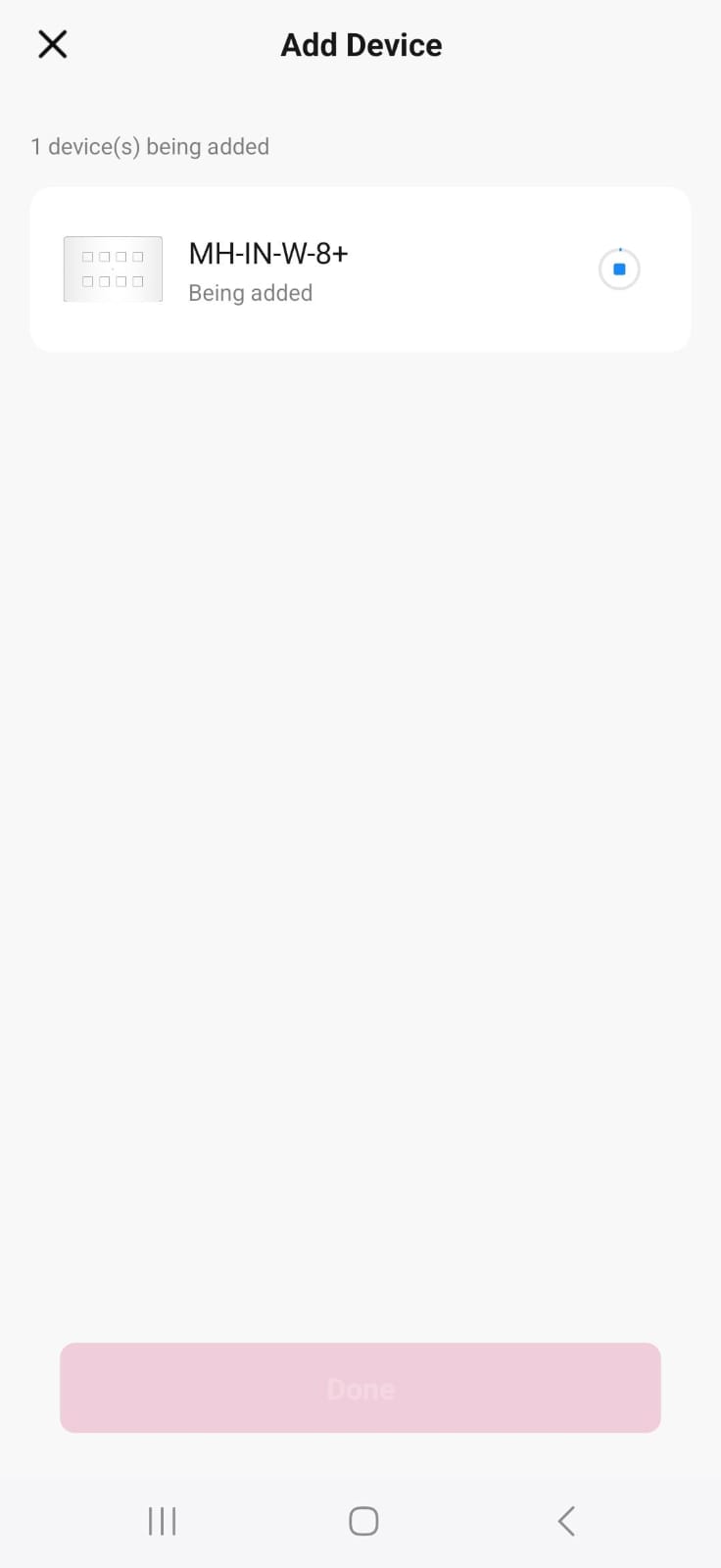

 10. it will connect to the HomeMate Touch Pannel Switch.

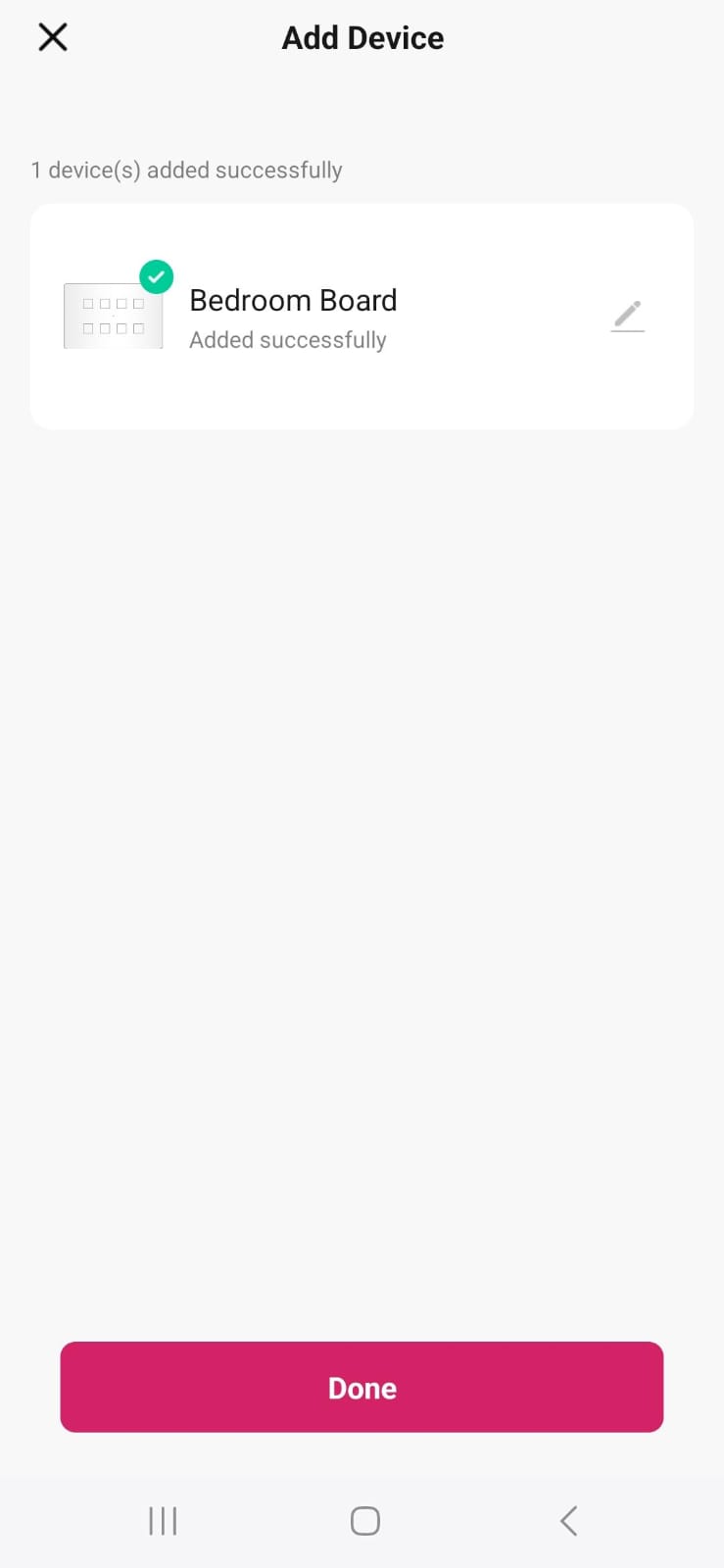

11. After adding you can edit the name of the HomeMate Touch Pannel Switch.

12. Tap on pencil mark located after 4 Switch.

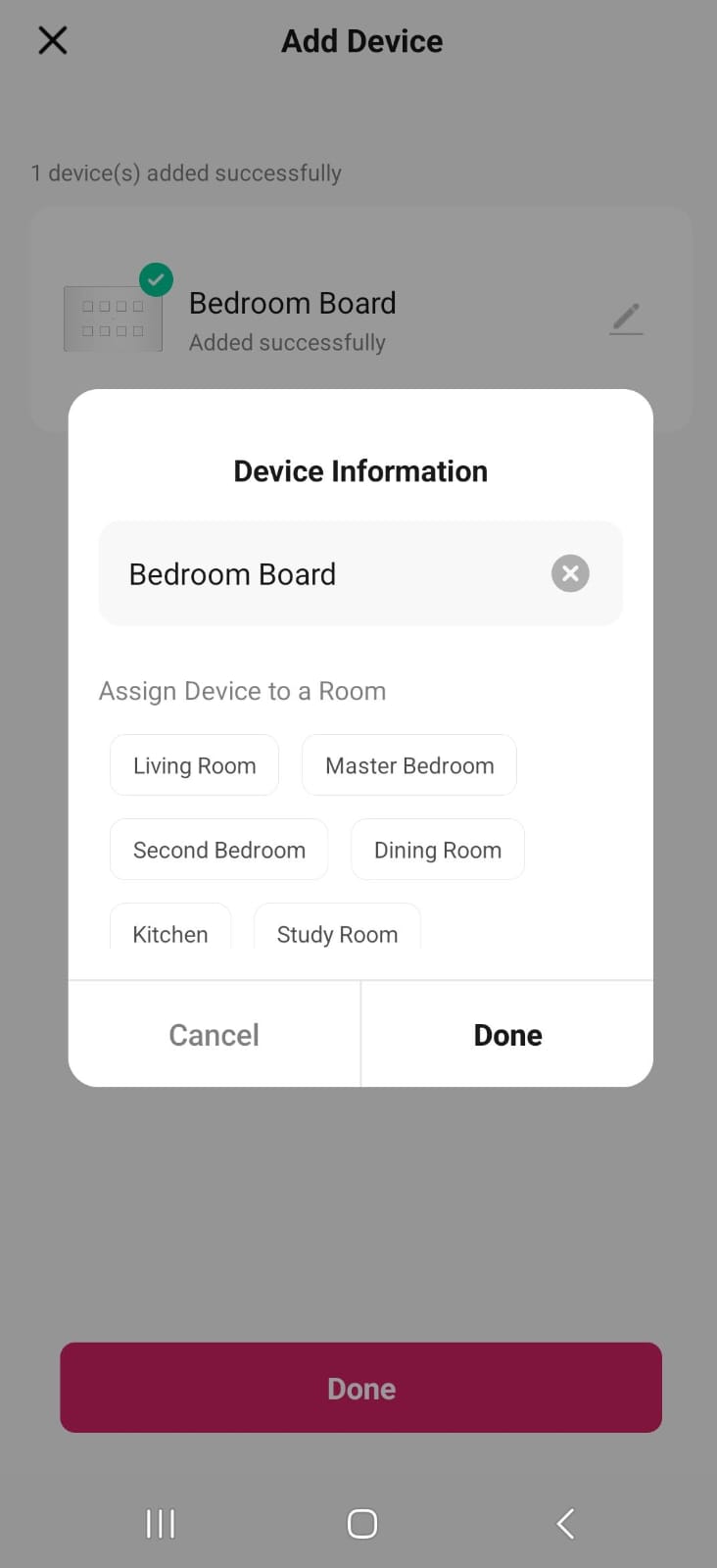

13. Type the desired name like "Bedroom switch" tap on "Save" then tap on "Done".



Additional Features:

1. Touch Mode Button

    For touch mode button to control lighting It support two modes: Bistate mode and Monostate mode:

ModeOperationDefault
Bistate Mode

Press the button to turn the lighting on

Release to turn the lighting output off

    /
Monostate Modetap to turn on or off the lighting OutputDefault Mode



2. Operational Configuration

    1. Power On status

  • Power Off: Upon power restoration, all output terminals will remain off.
  • Power On: Upon power restoration, all output terminals will turn on.
  • Restart Memory: Upon power restoration, the output will restore to the state before the power was cut.

  2. Backlight Settings

  • Backlight ON Color: Choose between Red/Blue/White/None for the ON state.
  • Backlight OFF Color: Choose between Red/Blue/White/None for the OFF state.
  • Backlight Brightness: Adjustable from 0 (Min) to 100 (Max) percentage.
  • Backlight Brightness Automatic Adjust: Enable or disable. When enabled, manual adjustment disables this feature.
 Model Type 2: 2S+1 Fan + Socket

       It is suitable for a 4-modular gang box and can control 2 on/off Switches and 1 Fan with Speed Control.

  • The installation must be carried out by a qualified electrician following local regulations.
  • Keep the device away from water, damp, or hot environments.
  • Installation Guidelines:
    • Follow the provided wiring diagram.
    • Switch off the main supply while making connections.
    • Ensure all connections are dry and made in a safe environment.

Note: The ON/OFF operation works through live wire power toggling.

  • CAUTION: RISK OF ELECTRIC SHOCK OR BURNS. USE IN DRY LOCATION ONLY.






Model Type 2: 4S+ Socket

    It is suitable for a 4-modular gang box and can control 4 on/off Switches.

  • The installation must be carried out by a qualified electrician following local regulations.
  • Keep the device away from water, damp, or hot environments.
  • Installation Guidelines:
    • Follow the provided wiring diagram.
    • Switch off the main supply while making connections.
    • Ensure all connections are dry and made in a safe environment.

Note: The ON/OFF operation works through live wire power toggling.

  • CAUTION: RISK OF ELECTRIC SHOCK OR BURNS. USE IN DRY LOCATION ONLY.





Specifications of 4 Module Touch Panel

1. Rated Voltage: AC 110-230V, 50/60 Hz.

2. Rated Load: Incandescent Lamp: 2500W

   LED Lamp: 200W or 4 nos (whichever is higher)

3. Socket : 10A (Max)

4. Wireless Type: 2.4GHz, BLE (Bluetooth)

5. Scheduling, Timer, Scenes, Family Sharing, Last State Memory.



Loss or damages resulting from un-authorized adaptations/adjustments/tampering/improper installation of the product are not covered. Also, Accidental/Physical/Water damages and damages due to High Voltage burnouts are out of the purview.



For Alexa linking process, click here.

For Google Assistant linking, click here.

For whatsapp support, click here

HomeMate 4 Module Touch Panel Purchase links: Website - Click here and Amazon - Click here

For any issue or query, mail us at support@homemate.co.in or call +91-838-404-8232 between 10 am to 6 pm.
