What you need to get started

1. HomeMate Smart Plug 16A must be added on the HomeMate Smart App.
2. Phone must be connected to 2.4 Ghz WiFi network only (and not 5 Ghz).
3. Location should be ON.
4. Mobile Bluetooth should be ON.

Download app and Register account

1. Download HomeMate Smart App from App Store or Google Play.

       - Use link to download HomeMate Smart app - https://a.smart321.com/homematesmart

       - You can scan the QR code below to download the HomeMate Smart App：

          You can also search “HomeMate Smart” in either App Store or Google Play to install the App.

      2. Open App and register your account.

      3. Create Home in Home Management Setting.

      4. Set location.

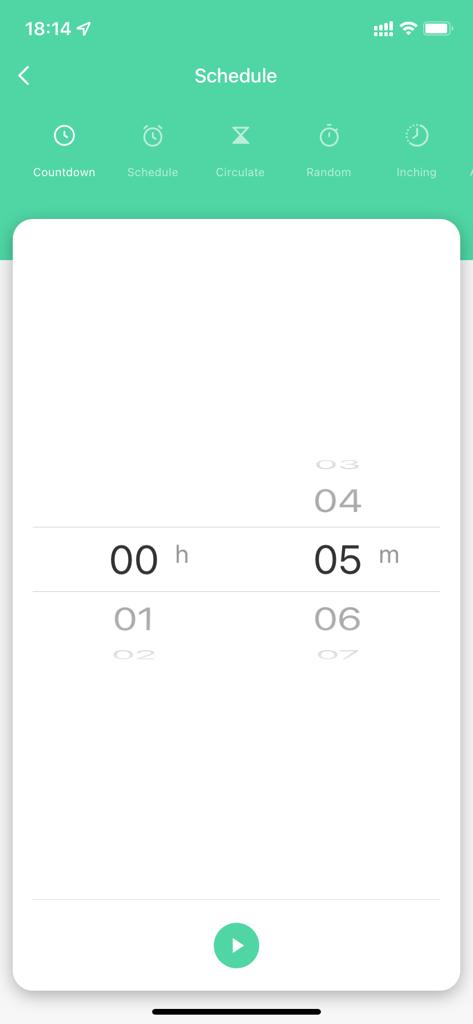

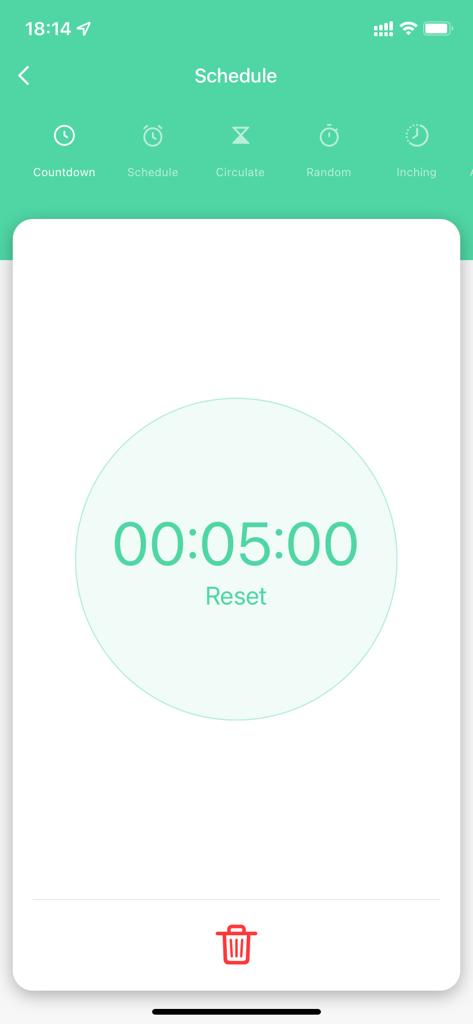

COUNTDOWN TIMER

You can use Countdown Timer feature to Turn On or Off the Smart plug

If the plug is at ON position, the Countdown Timer will Turn OFF the Smart Plug.

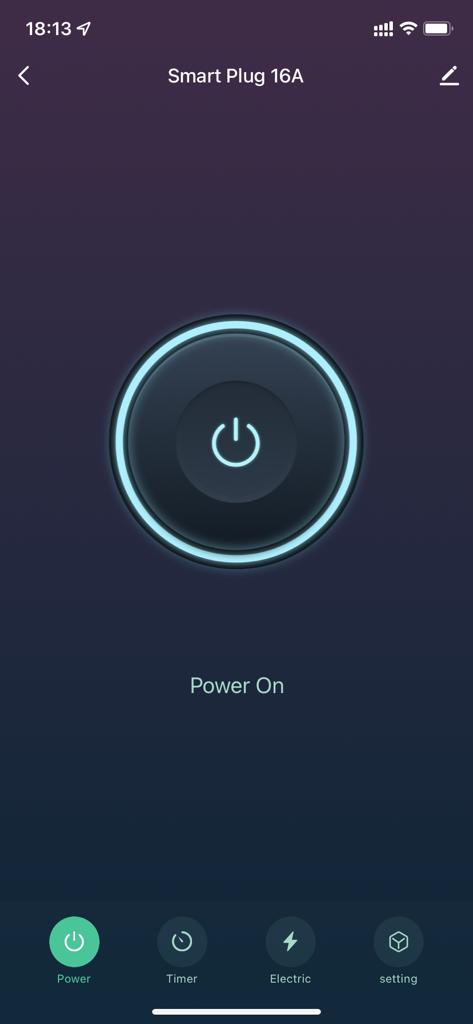

1. Tap On "Timer"




2. Set the Countdown Timer.






3. Tap on "Play Button" to start the countdown timer.
4. The Smart Plug will Turn Off after 5 mins as showing on the Screen.





If the plug is at OFF position, the Countdown Timer will Turn ON the Smart Plug.

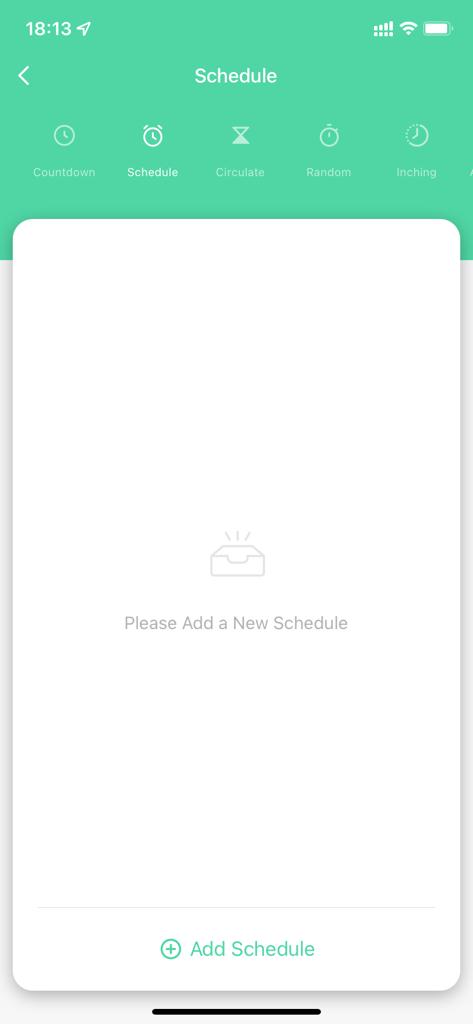

SCHEDULE

You can use Schedule Feature to create a Schedule to Turn On and Off the Smart Product according to Time, day etc.

1. Tap on "Timer"




2. Tap on "Schedule"




3. Tap on "Add Schedule"

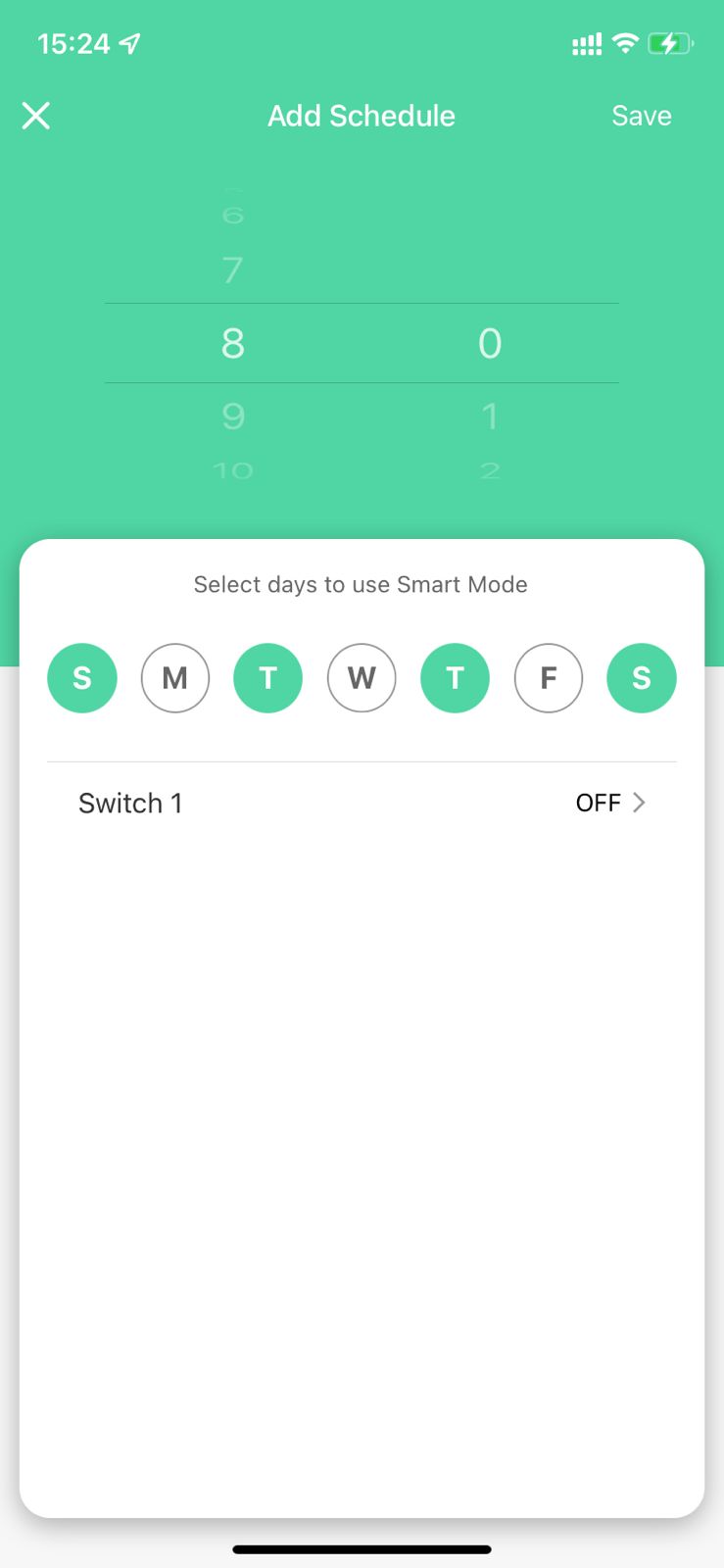

4. Set the timings and select the Weekdays and also set the Switch position On or Off. Then Tap on "Save"




5. You can make as many Schedule as you want.






CIRCULATE

You can use Circulate Feature to create a Schedule to Turn On and Off the Smart Product between a particular Time Gap.

1. Tap on "Timer"




2. Tap on "Circulate"



3. Tap on "Save"

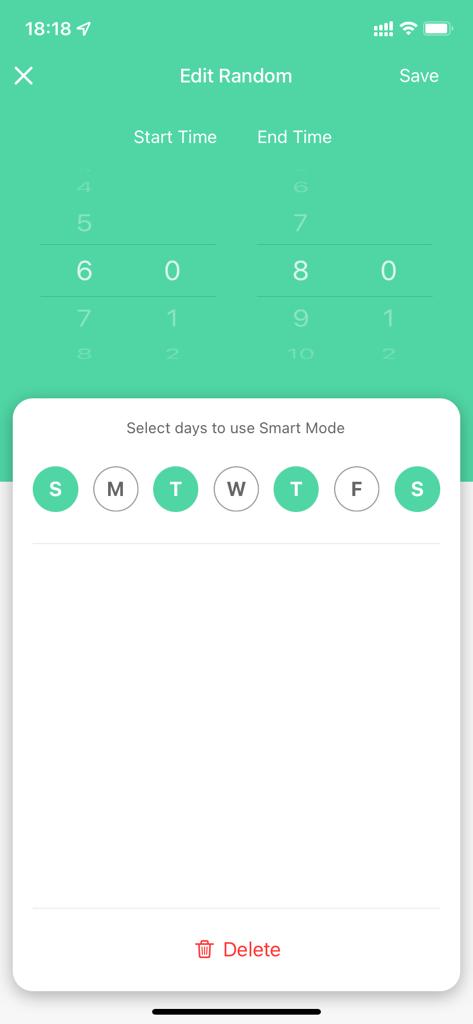

RANDOM

You can use Random Feature to create a Schedule to Turn On and Off according to a time period and it will operate the Smart Breaker in Smart Mode.

1. Tap on "Timer"




2. Tap on "Random"




3. Tap on "Save"

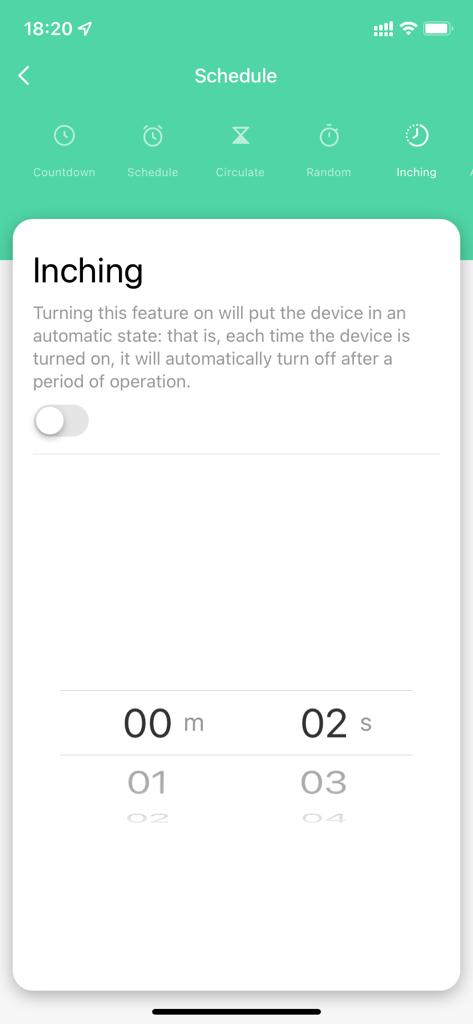

INCHING

You can use Inching Feature to put the device in an Automatic State: that is, each time the device is turned on, it will automatically turn off after a period of operation.

1. Tap on "Timer"




2. Tap on "Inching"




3. Set the time and slide the inching button to save the settings.

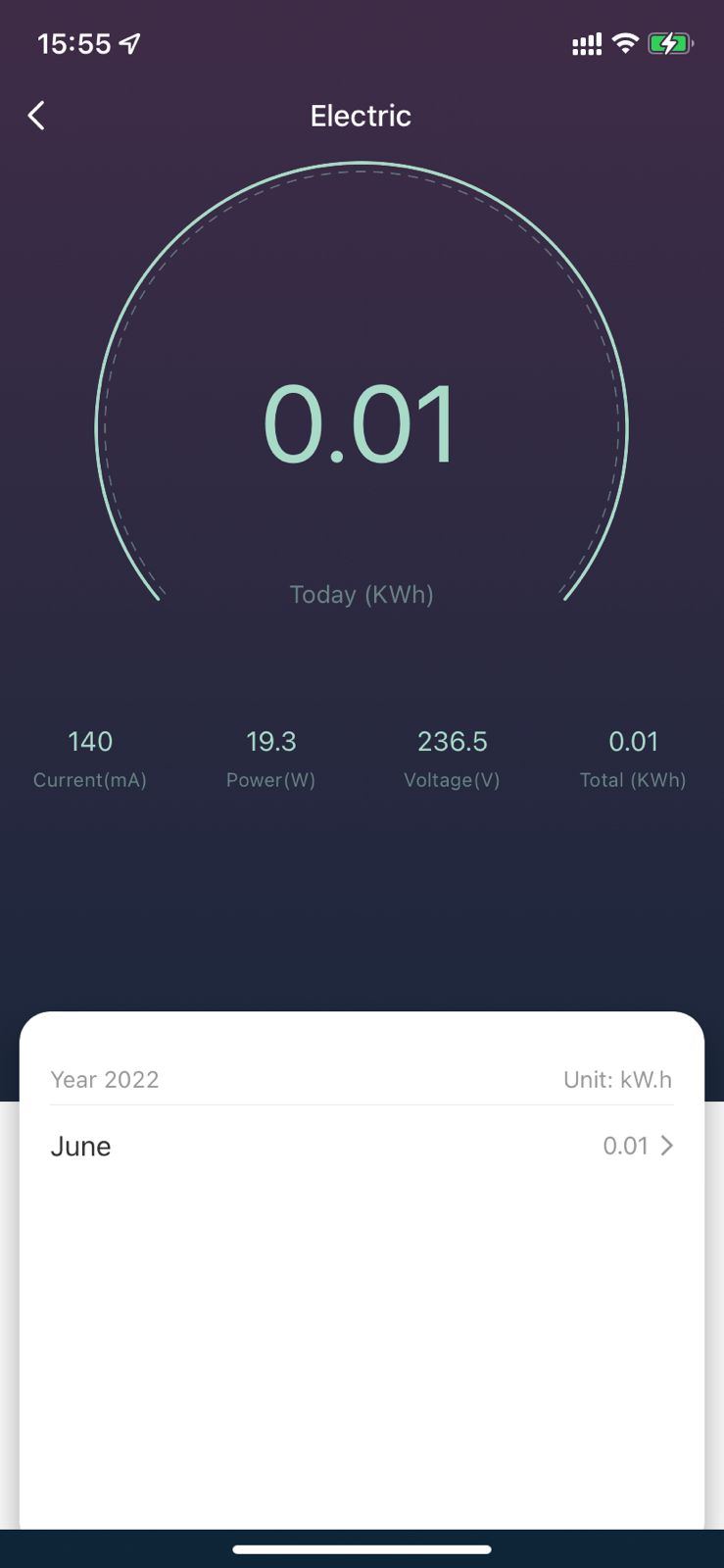

ELECTRICITY MONITORING

You can use Electricity Monitoring Feature to know the Electricity consumed by the HomeMate Smart Product and keep a track of it.
Tap on "Electric"

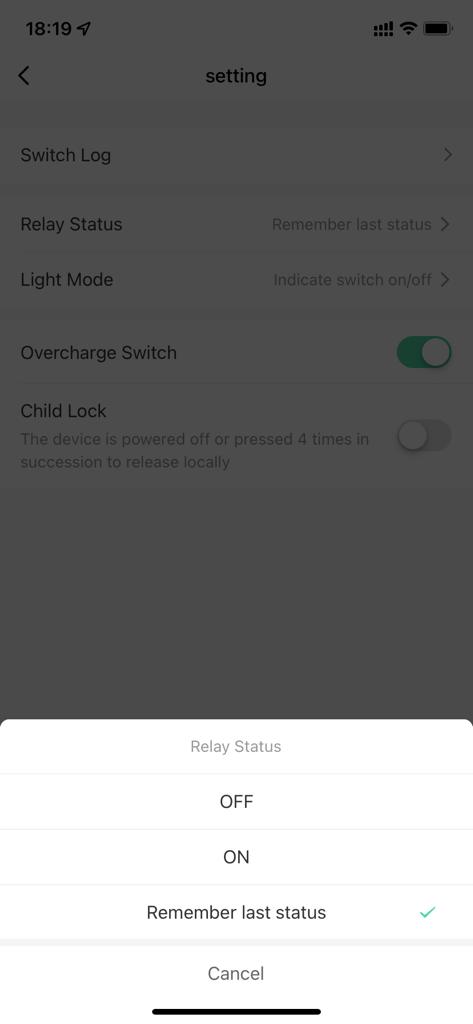

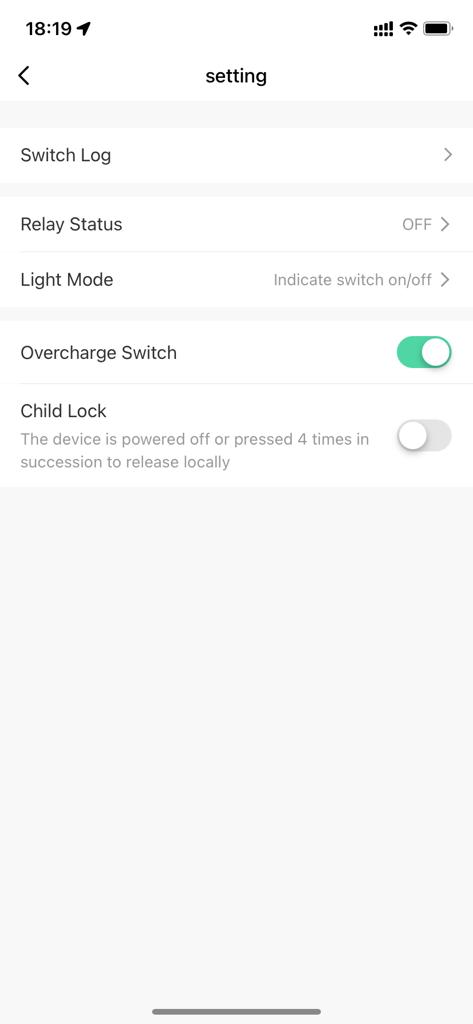

OPTIONAL SETTINGS

1. Tap on "Settings"



2. You will see different options

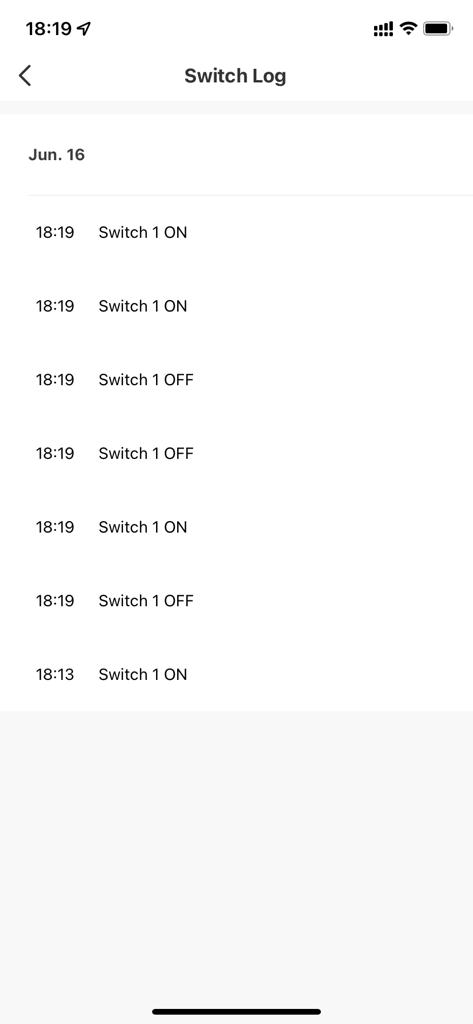

3. Tap on "Switch Log" to check the power on/off logs of the plug.




4. Tap on "Relay Status" to change the default state of Plug when the electricity goes Off and comes back On.

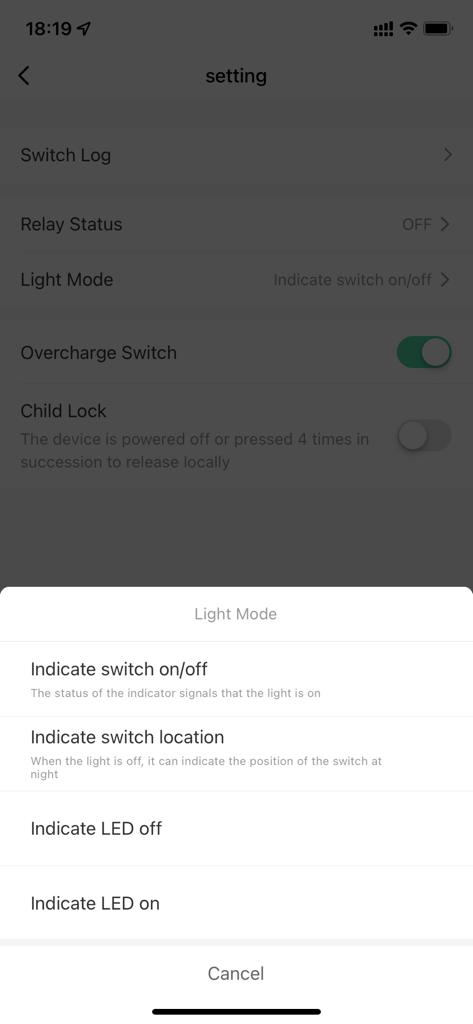

5. Tap on "Light Mode" to change the Indicator LED settings of the plug.



6. Tap on "Overcharge Switch" to turn On Overcharge protection on Smart Plug 16A.




7. Tap on "Child Lock" to turn on Child Lock protection.




Important links:

For Alexa linking process, click here.

For Google Assistant linking, click here.

For whatsapp support, click here

HomeMate Smart Plug 16A purchase links: Website - Click here and Amazon - Click here

For any issue or query, mail us at support@homemate.co.in or call +91-838-404-8232 between 10 am to 6 pm.
